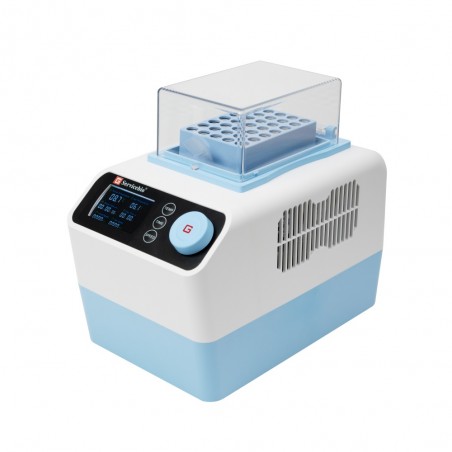

Dry Bath (Heating, Cooling, Shaking)

Product Information

The Dry Bath series combines heating and mixing functions, featuring high temperature accuracy and excellent temperature uniformity. It is widely used in applications such as gene synthesis, gene purification, protein and gene denaturation, enzyme reactions, and bacterial growth.

Products Features
    1. Utilizes a microcomputer-controlled metal bath device.
    2. High-temperature control accuracy, precise oscillation speed, and low fluctuation.
    3. Multiple standard sample modules are available for selection, with convenient replacement.
    4. Customization is also possible according to user requirements.
    5. Equipped with a function, allowing users to set a cultivation time within the range of 1m~99h59m. An alarm will be triggered after the set time is completed.
    6. Driven by a brushless DC motor for long lifespan.

Technical Parameters

Product Performance

1. Temperature Setting Range: 0 °C – 100 °C

2. Temperature Control Range: Ambient –20 °C to 100 °C

3. Cooling Time (from 24 °C to 4 °C): ≤ 15 min

4. Heating Time (from ambient to 100 °C): ≤ 12 min

5. Temperature Accuracy: ≤ ±0.5 °C

6. Module Temperature Uniformity: ≤ ±0.5 °C

7. Speed Range: 200 – 1500 RPM

Normal Operating Conditions

Ambient Temperature: 10 °C – 30 °C

Relative Humidity: ≤ 70 %
Input Power Supply: AC100 V – 240 V
AC Frequency: 50 Hz / 60 Hz

Power Consumption: 200 W

Note: Before using the instrument, please verify that the operating conditions meet the requirements above.

Transportation and Storage Conditions

Ambient Temperature: –20 °C – +55 °C
Relative Humidity: ≤ 80 %

Module Parameters:

Note: Metal modules can be customized according to user requirements, if you need customized modules, please contact the supplier.

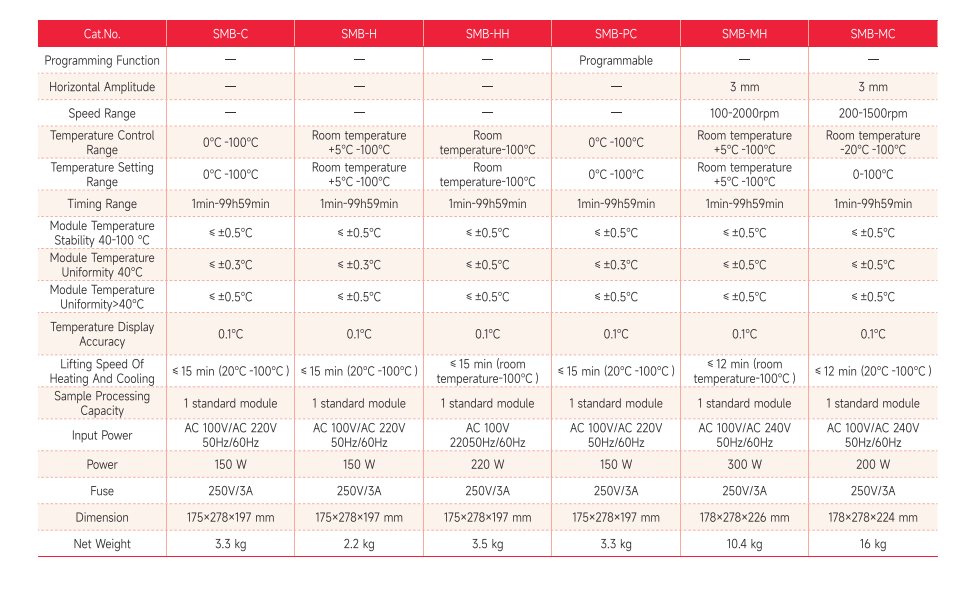

Parameter Comparasion

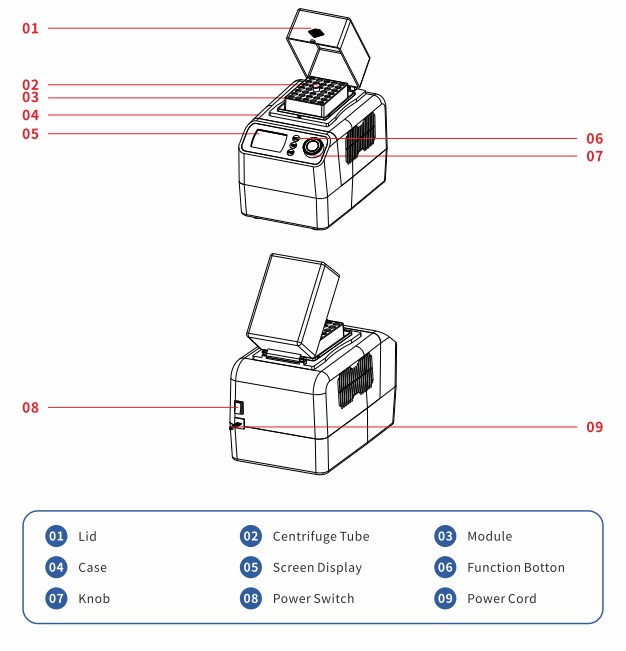

Product Structure
