Glass Plate Set (for Servicebio & Bio-Rad, with Graduation Lines)

Product Description

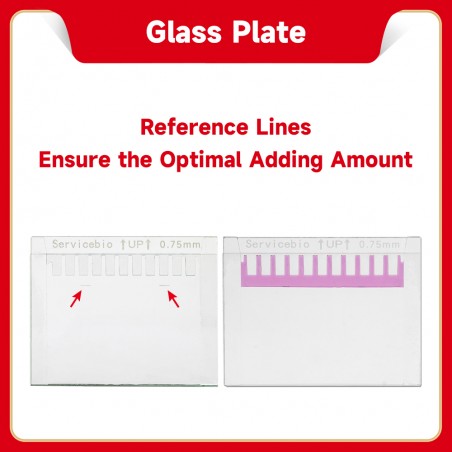

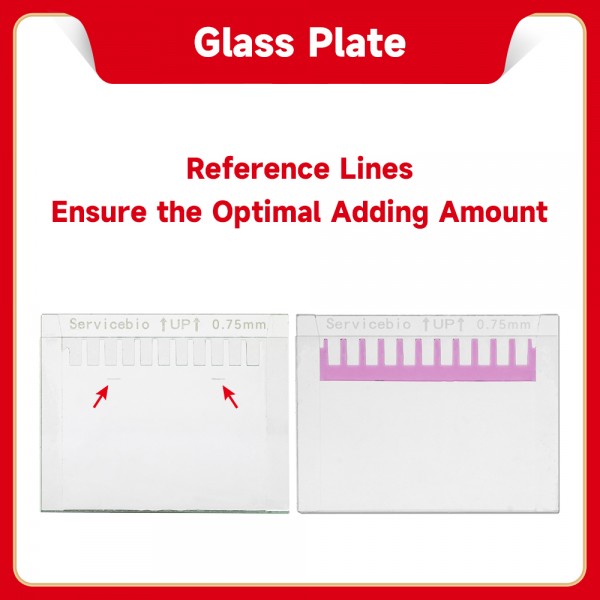

All Servicebio electrophoresis glass plates are equipped with stacking gel and resolving gel graduation lines. Gel casting is performed according to the marked lines to ensure accurate preparation and avoid errors.

0.75 mm, 1.0 mm, 1.5 mm thick flat & notched glass plates for gel casting, compatible with Bio-Rad electrophoresis tanks, including Mini-PROTEAN Tetra and Mini-PROTEAN 3 vertical electrophoresis tanks, as well as Tanon and other brands.

Manufacturing process includes raw glass cutting, polishing, adhesive bonding, slotting, and final polishing. CNC-controlled precision ensures standardized quality. The plates feature strong adhesion and do not delaminate during use.

Custom processing for any specifications is also available.

Dimensions:

Notched glass plate

0.75 mm: 100.5 mm × 82.5 mm × 3.3 mm

1.0 mm: 100.5 mm × 82.5 mm × 3.5 mm

1.5 mm: 100.5 mm × 82.5 mm × 3.5 mm

Flat glass plate: 100.5 mm × 73 mm × 1.1 mm

For Research Use Only!
