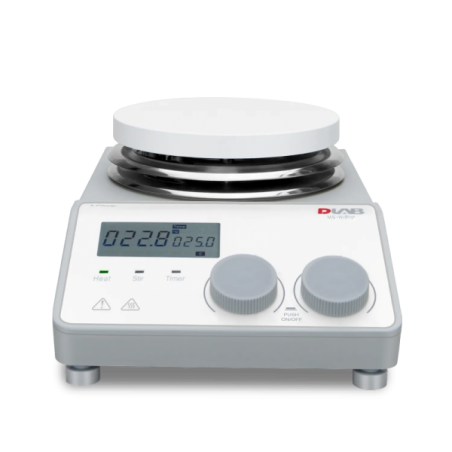

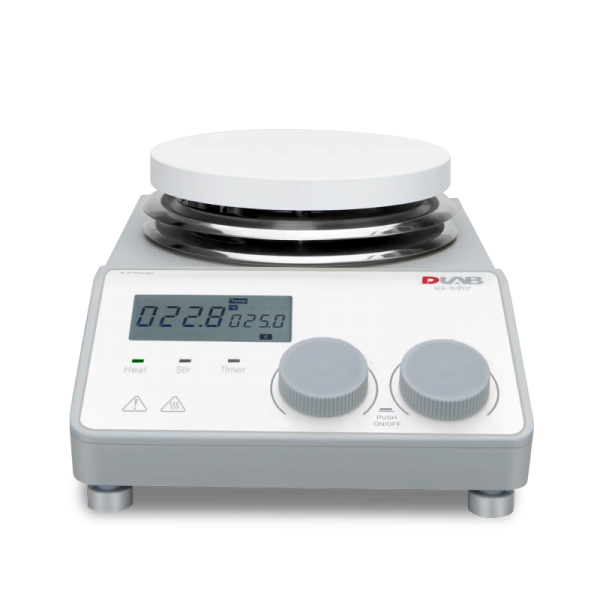

LCD Digital Magnetic Hotplate Stirrer

$199.00
MS-H-Pro
1 Item
Quantity

Demo Equipment



DC brushless motor free of maintenance and spark, and with long service life

Digital temperature control up to 340°C

Digital speed control up to 1500rpm

Maximum stirring quantity of H2O is 20L

Safety circuits provide overheating protection

"HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off

External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C

Work plate with ceramic coating provides good chemical-resistantperformance

Remote function provides PC control and data transmission



Work plate Dimension
 Ø135mm（5 inch）
Work plate material
 Aluminum cover with ceramic coating
Max. stirring quantity [H2O]
 20L
Speed range
 100-1500rpm
Speed display
 LCD
Temperature display
 LCD
Heating temperature range
 Room temp.-340℃，increment 1℃
Temperature control accuracy
 ±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy
 ±0.1℃
External temperature sensor
 PT1000 ( accuracy±0.2℃ )
"Hot" warning
 50℃
Overheating temperature protection
 420℃
Motor type
 Brushless DC motor
Stirring positions
 1
Max. magnetic bar length
 80mm
Data connector
 RS232
Timer function
 1min to 99h59min
Protection class
 IP21
Motor rating output
 10W
Power
 720W
Heating output
 600W
Voltage,Frequency
 100-120V/200-240V，50/60Hz
Dimension [WxDxH]
 280×160×100mm
Weight
 2.8kg
Permissible ambient temperature
 5-40℃
