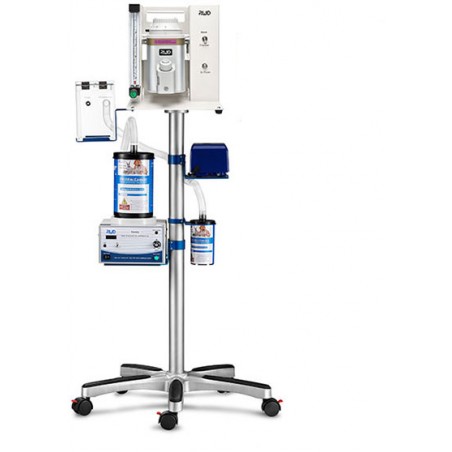

R530 Portable Anesthesia Machine

Description

Especially designed for safe, simple, and controllable inhalation anesthesia for rat, mouse, rabbit, hamster within 7 kg, It is protable upgraded from the R500 compact veterinary Anesthesia Machine. places all your anesthesia equipment including vaporizer, flowmeter, induction chamber, air-pump, gas evacuation apparatus, canister on one sleek, compact post, which allows easy and convenient transportation of the whole unit.

Features:

• Integration of the draw, Save space, easy to move
• Accurate oxygen flow meter, Flow control range: 0-1 L/min and 0-4 L/min available
• High accuracy vaporizer (Each one has an independent test report)
• Gas toggle switch, button switching gas path, more than 100,000 times of service life.
• Quick oxygenation switch to remove residual anesthetic mixture in the tube or anesthesia induction chamber.
• Oxygen or air can be chosen as gas supply.

Technical Specifications:

• Applicable to rats, mice, hamsters, guinea pigs, rabbits, cats and other animals within 7 kg
• 1 to 4 L/min O2 flowmeter
• 10 L/min O2 flush
• Three kinds of filling type vaporizer is optional-Pour Fill , Easy Fill and Key Fill
• Anesthesia concentration range: 0-5 %, or 0-8 %, accuracy low than 10 %
• Work temperature: 10-35 ℃
