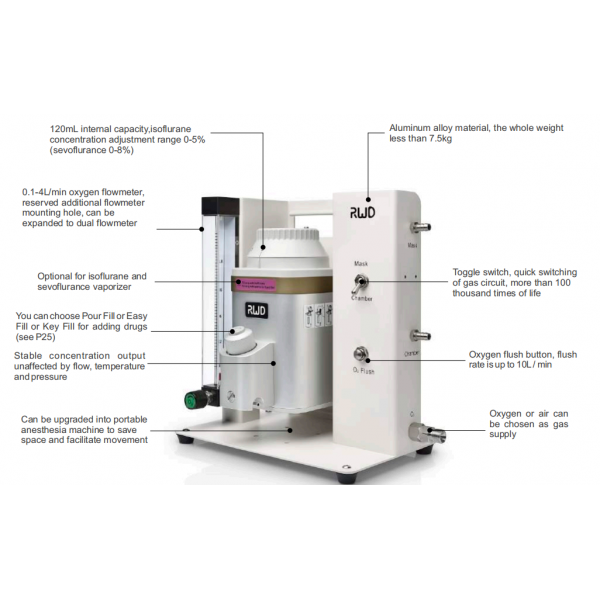

R500IE Small Animal Anesthesia Machine - Basic

R500 is designed for the laboratory who are looking for a cost-effective instrument in rodent surgeries.
Featured with compact design, flexible operation, high accuracy vaporizer, the anesthesia machine is ideal for small animals within 7kg, like rats, mice, mouse, hamsters, guinea pigs, rabbits, cats.

More than 10,000 have been installed in research institutions and universities around the world, such as Yale University and Harvard University.

R500IE

Compact Small Animal Anesthesia Device-Easy Fill, 0-4L

R500IK

Compact Small Animal Anesthesia Device-Key Fill, 0-4L

• Applicable to rats, mice, hamsters, guinea pigs, rabbits, cats and other animals within 7kg
• 0.05-1L/min, 0.1 to 4 L/min , o.2-10L/min O2 flowmeter
• 10L/min O2 flush
• Three kinds of filling type vaporizer is optional-Pour Fill , Easy Fill and Key Fill
• Concentration range: 0-5% or 0-8%, Accuracy range is low than 10%
• Work temperature:10-35℃

Applicable to all kinds of small animal experiment. Injection experiments :virus,cells,drugs,etc. Live imaging:MRI,CT,X-ray and other imaging. Physiological research: photo-genetics, electro-physiological experiment, calcium imaging, micro-dialysis, etc. Model Development:MCAO model,spinal cord injury, myocardial ischemia, etc. Other:animal euthanasia, eye blood collection, tumor size measurement, etc.
