Manual Micromanipulators

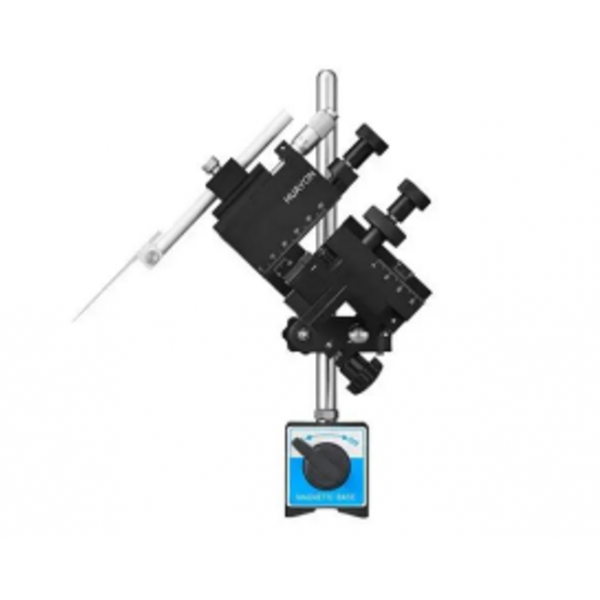

The M3 micromanipulator is widely used in experimental occasions requiringhigh stability and accuracy. The three moving axes use a clever verticalsuperposition combination design to reduce the size and save much morespace. The forward and backward control knobs for each axis are set verticallyat the rear, making it easy to operate and convenient to adjust the positioningof the knobs under microscope.While moving, there would be no drift, side clearance, migration and pasting.The key patented transmission technology is used to further ensure the smoothand fine adjustment of transmission.For the X-axis, both coarse and fine moving adjustment are used.

X axis (fine): moving 13mm, reading accuracy is 10um(0.01mm).

X-axis (coarse): moving 45mm, reading accuracy 100um (0.1mm).

Y axis (coarse): moving 22mm, reading accuracy 100um (0.1mm)

Z axis (coarse): moving 27mm, reading accuracy 100um (0.1mm).
