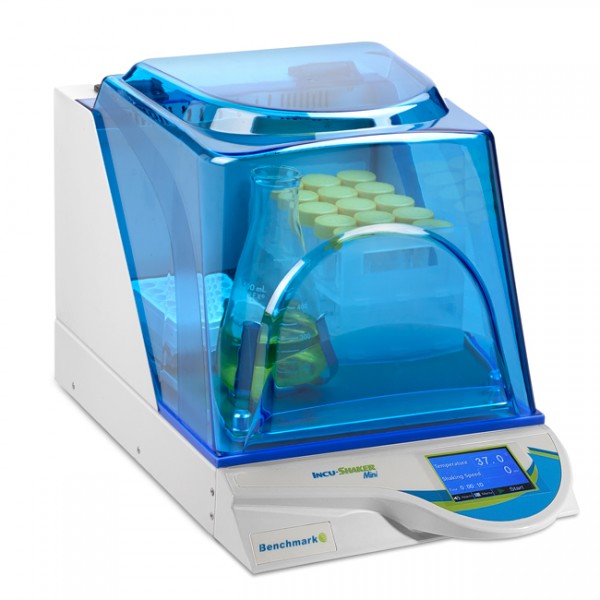

The Incu-Shaker™ Mini with non-slip Rubber Mat

$3,634.95
CNSH1001-M
10 Items
Quantity

The Incu-Shaker™ Mini is the most compact shaking incubator in its class. Despite the remarkably small footprint, a large 11.5 x 9.5 in. work space accepts several platforms and a variety of flasks, tubes and other common vessels.

The standard platform (included) features a non-slip, rubber coated surface, ideal for tissue culture flasks, Petri dishes and staining trays.

The convenient MAGic Clamp™ (PATENTED) platform is also available for use with Erlenmeyer flasks and test tube racks. The unique, magnetic attachment method is the easiest way to instantly change between flask clamps of different sizes.

In addition to the intuitive control panel, there is an advanced mode that features step programming to change the parameters at timed intervals.



  • Extremely compact, just 11″ wide
  • TOUCH Screen control over time, speed and temperature
  • Horizontally circular 19mm orbit for aeration & mixing
  • Instantly exchange flask clamps with MAGic Clamp™ accessories (PATENTED)
  • STEP programming for linking consecutive programs



Specifications
Temperature Range Ambient +5° to 70°C
Temperature Increments +0.1°C
Temperature Uniformity ±0.5°C
Temperature Accuracy ±0.1°C
Shaking Speed Range 30 to 300rpm
Speed Increments 1rpm
Shaking Orbit 19mm (3/4")
Operating Temp Range +4 to +65°C
Platform Dimensions 9.5 x 11.5 in. / 24 x 28 cm
Exterior Dimensions (W x D x H) 11 x 18.8 x 13 in. / 28 x 41 x 33 cm
Height with Lid Open 25 in. / 63 cm
Timer 1 min. to 48 hours / continuous
Weight 25 lbs / 11.5 kg
Electrical 115 or 230V, 50-60Hz; 250W
Warranty 2 Years



Technical Data
Temperature Range (Mini) Ambient +5 to 70°C, increments of 0.1°C
Temperature Range (10L) Ambient +5 to 60°C, increments of 0.1°C
Temperature Range (10LR) Ambient -12 to 60°C, increments of 0.1°C
Temperature Uniformity ±0.5°C Mini / ±1.0°C 10L/LR
Temperature Accuracy ±0.1°C
Shaking Speed Range 30 to 300 rpm, increments of 1 rpm
Shaking Orbit 19 mm, 3/4 in.
Platform Dimensions, Incu-Shaker Mini 9.5 x 11.5 in. / 23.5 x 29.2 cm
Platform Dimensions, Incu-Shaker 10L/LR 17.8 x 17.8 in. / 45 x 45 cm
Exterior Dimensions, Incu-Shaker Mini 11 x 18.8 x 13 in. / 28 x 48 x 33 cm
Exterior Dimensions, Incu-Shaker 10L 20 x 26 x 19 in. / 51 x 65 x 47 cm
Exterior Dimensions, Incu-Shaker 10LR 20 x 31 x 22 in. / 51 x 79 x 56 cm
Weight, Incu-Shaker Mini 25 lbs / 11.5 kg
Weight, Incu-Shaker 10L 120 lbs / 55 kg
Weight, Incu-Shaker 10LR 170 lbs / 78 kg
Electrical 120 or 230V, 50-60Hz



Maximum Capacity of Erlenmeyer Flasks
Flask SizeIncu-Shaker MiniIncu-Shaker 10L/LR
50ml 20 49
125ml 12 36
250ml 8 25
500ml 5 16
1L 2 9
2L 0 5
3L 0 4
