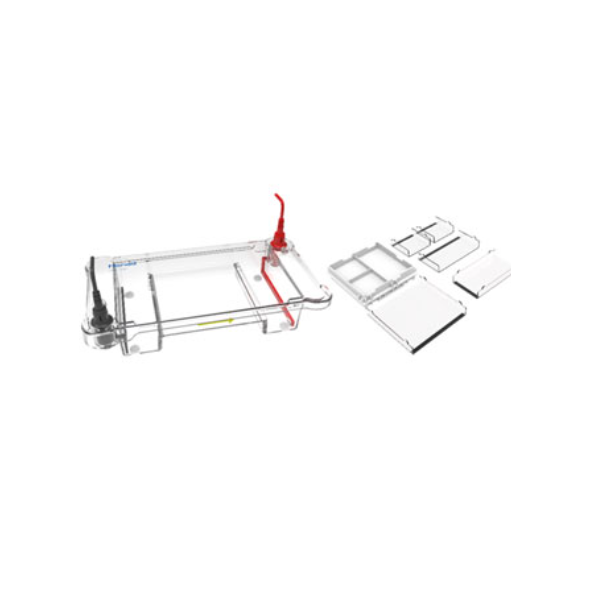

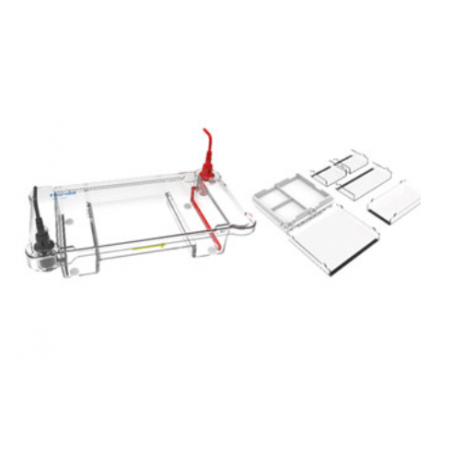

MM-DNA Electrophoresis System Medium, horizontal electrophoresis system

$426.00
CNSME60101
10 Items
Quantity

The MM-DNA Medium Horizontal Electrophoresis System is designed for agarose gel electrophoresis of nucleic acid samples. It is suitable for the separation, purification, and preparation of charged particles in biochemical research applications. The system can be used for DNA identification, separation, and preparation, as well as for molecular weight determination.

The unit is equipped with a versatile gel-casting tray that supports gel sizes of 6.5 × 6.5 cm, 6.5 × 13 cm, 13 × 6.5 cm, and 13 × 13 cm. It also includes nine combs with different numbers of teeth and thicknesses. Agarose gels of various sizes can be placed directly on the platform of the horizontal electrophoresis chamber for electrophoretic separation.

MM-DNA Electrophoresis System Specifications

Catalog No. CNSME60101 Model MM-DNA
Product Name MM-DNA Medium Horizontal Electrophoresis System
Gel Dimensions 130 × 130 mm, 130 × 65 mm, 65 × 130 mm, 65 × 65 mm
Comb Specifications 0.75 mm: 7 + 7 wells / 14 wells, 9 + 9 wells / 19 wells Number of Combs 9 double-sided combs
1.0 mm: 12 + 12 wells / 27 wells Buffer Volume 1000 mL maximum
1.5 mm: 7 + 7 wells / 14 wells, 9 + 9 wells / 19 wells Overall Dimensions 300 × 170 × 80 mm
2.0 mm: 3 + 2 wells / 3 + 3 wells Weight 2 kg



MM-DNA Electrophoresis System

Cat. No.NameDescriptionSpecification
ME60101 MM-DNA Electrophoresis System Medium, horizontal electrophoresis system 1/set
MEA6001 MM-DNA Electrode (Anode, Red) Included, available for separate purchase 1/pk
MEA6002 MM-DNA Electrode (Cathode, Black) Included, available for separate purchase 1/pk
MEA6003 Gel Combs (0.75 mm, 7+7 wells/14 wells) Included, available for separate purchase 4/pk
MEA6004 Gel Combs (0.75 mm, 9+9 wells/19 wells) Included, available for separate purchase 4/pk
MEA6005 Gel Combs (1.0 mm, 12+12 wells/27 wells) Included, available for separate purchase 4/pk
MEA6006 Gel Combs (1.5 mm, 7+7 wells/14 wells) Included, available for separate purchase 4/pk
MEA6007 Gel Combs (1.5 mm, 9+9 wells/19 wells) Included, available for separate purchase 4/pk
MEA6008 Gel Combs (2.0 mm, 2+3 wells/3+3 wells) Included, available for separate purchase 4/pk
MEA6009 Gel Tray (130 × 130 mm) Included, available for separate purchase 1/pk
MEA6010 Gel Tray (130 × 65 mm) Included, available for separate purchase 1/pk
MEA6011 Gel Tray (65 × 130 mm) Included, available for separate purchase 1/pk
MEA6012 Gel Tray (65 × 65 mm) Included, available for separate purchase 1/pk
MEA6013 Gel Caster (Gel Size: 130 × 130 mm, 130 × 65 mm,
65 × 130 mm, 65 × 65 mm)		 Included, available for separate purchase 1/pk
MEA6014 MM-DNA Electrophoresis System Lid
(with electrode cables)		 Included 1/pk
MEA6015 MM-DNA Electrophoresis System Tank
(without electrodes)		 Included 1/pk
MEA6016 MM-DNA Electrophoresis System Power Cord
(Universal)		 Included 1/set
