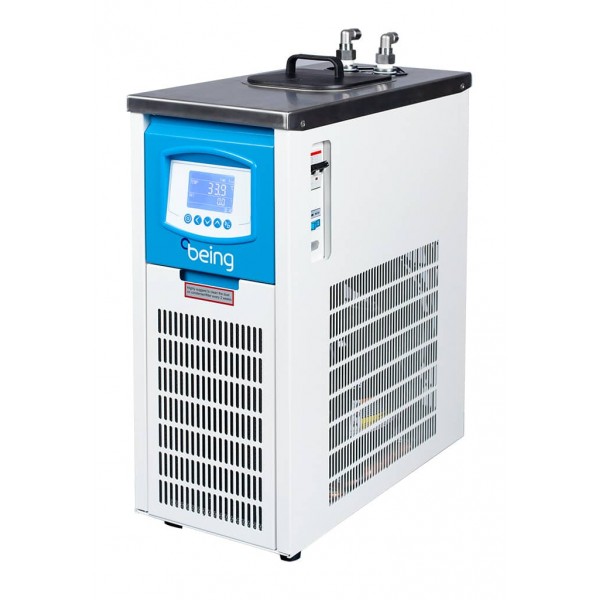

Recirculating Chiller 1.1 cu ft (30 Liters)

$5,200.00
CNSBRC-20
10 Items
Quantity

Performance and Features

  1. Designed so that test results are in line with international standards DIN 12880.
  2. PID temperature controller with LCD screen provides accurate and reliable temperature control.
  3. Automatic calibration function, be able to adapt to a variety of laboratory environments.

Convenience

  1. A product line breadth to meet a variety of needs
  2. Wide range of options to meet a variety of experimental needs.
  3. Temperature/Capacity/Liquid Flow/Pressure/Control Mode/Internal Circulation/External Circulation.
  4. Convenient design for easy maintenance
  5. Round curved inner angle is easy to clean.
  6. Inner chamber is made from corrosion-resistant mirror stainless steel.

Safety

  1. Preset On/Off function.
  2. Built-in power interruption protection function, automatic run after power interruption.
  3. Independent over-temperature protection meets DIN 12880 International standard requirements.
  4. Temperature deviation alarm.
  5. Over-current protection alarm.

Specifications

Capacity

Storage Tank (L)

30

Liquid （L）

25
Cooling Feature

Lowest Temp Without Load (℃)

–20℃

Temperature Range (℃)

–20℃ to 20℃

Temperature Stability (℃)

±2℃

Cooling capacity（W）@20℃

2800

Cooling capacity（W）@10℃

2500

Cooling capacity（W）@0℃

2100

Cooling capacity（W）@-10℃

1900

Cooling capacity（W）@-20℃

900

Refrigerant

R410A
Electrical

Whole unit power（W）

1600

Power Requirement

208～230VAC / 60Hz

Electrical Plug Type

NEMA 6-15

Safety Features

Delay, leakage, overcurrent, overvoltage
Pump

Pump type

DC Magnetic Drive Vortex

Recirculating Pump Power（W）

60

Pump Flow Rate（L/min）

17

Max. Pump Head（m）

15

Pump Max. Pressure (psi)

22 (152KPa)

Inlet/Outlet Tube OD（mm）

Ø12 (DN15)

Inlet/Outlet Fitting Type

Push-to-connect
Other Features

Feet / Caster

Locking Casters

Noise (dB)

≤65
Dimensions

Reservoir (H x W x D) (Inch)

13.8 x 13.8 x 9.8

Exterior (H x W x D) (inch)

35.3 x 17.7 x 23.6

Net Weight（kg）

76

Reservoir Dimension（mm）

350 x 350 x 250

Exterior Dimension (H x W x D)（mm）(including casters)

821 x 450 x 600

Supported Rotavaps（Capacity x Units）

10L x 2 or 20L x 1

SKU Number

BRC15120C

Sizing

Shipping Information

Packaging Materials Wooden Crate
Outside Dimensions (in./mm)
30 x 23 x 43
750 x 580 x 1100
Shipping Weight (lbs./kg)
165.0
75.0
Freight Class 100.0
