RE100-S LED Digital Rotary Evaporator 1200cm²package

$2,091.00

Sku: CNSRE100-S1200

In stock: 10 Items

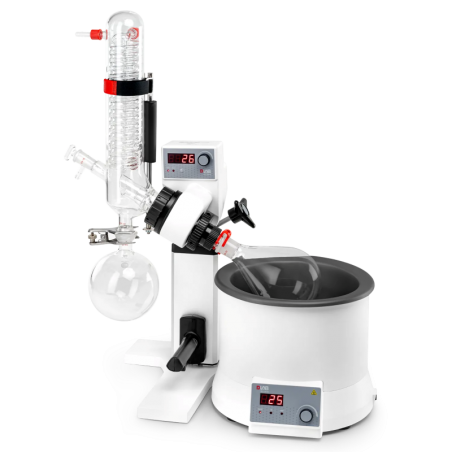

RE100-S LED Digital Rotary Evaporator

• 5L heating bath with a wide temperature range (room temp.to180 °C).

Independent temperature control makes it can be used separately. Water/oil heating mode can be changed just through a switch

• Manual lift combined with auxiliary lift for precise positioning of the glassware

• PID control ensures high temperature accuracy at ±1°C (water)

• Overheating protection temperature at 220°C

• Boil-dry protection, automatically power off if heating without water/oil in the heating bath

• Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process

• Condenser (cooling surface 1200/1700cm2 for selection), speeding up the flow rate of liquid with excellent cooling effect

• Ejection mechanism ensures easy exchange of evaporating flask

• Adjustable immersion angle

• Double spring sealing ring which is made of PTFE provides an excellent sealing performance

• Compatible with the entire range of RE100-Pro glassware

• Optional glassware with explosion proof film available

• High temperature warning when above 50°C

Temperature range	Room temp.-180℃
Speed range	20-200rpm
Evaporation capacity	Max.1.56L/h（H20）
Temperature control	Micro processer PID control Display
Timer	Yes
Lifting mode	Manual
Heating bath size	300×300×240mm
Heating Power	1200W
Voltage/Frequency	100-120/200-240V，50/60Hz
Weight	Main Unit:7kg Heating Bath:3kg
Permissible ambient humidity	≤80% RH
USB Interface	Yes
Applications	Chemical research, pharmaceutical manufacturing, food processing, cosmetics manufacturing, and chemical laboratories.
Evaporating flask volume	50-3000mL
Temperature control accuracy	water: ±1℃ ；oil: ±3℃
Direction of Rotation	Clockwise and counterclockwise
Ultimate vacuum	-
Display	LED
Time Setting Range	1-999s
Lifting stroke	110mm + auxiliary 100mm
Motor Type	Brushless DC motor
Power	1245W
Dimension[D×W×H]	Main Unit:440×320×450mm
Permissible ambient temperature	5-40℃
Protection Class	IP20
Safety features	Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection
