Gel Casting System (4-channel Gel Casting System)

$13,360.00
CNST-20 PLUS
10 Items
Quantity

Product Introduction

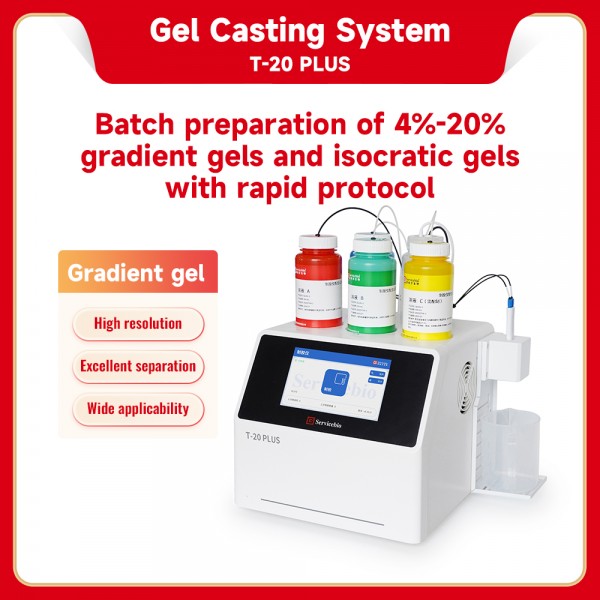

The T-20 PLUS Gel Casting System features a compact design, making it easy to store, access, install quickly, and carry. It is compatible with various glass plates of 0.75 mm, 1.0 mm, 1.5 mm thicknesses. This product is suitable for rapid gel casting and batch gel preparation in the laboratory.

Product Features

1. It can prepare gradient gels and isocratic gels of various concentrations ranging from 4% to 20%;

2. Simple settings, real-time mixing of reagents to avoid premature coagulation, and continuous gel preparation;

3. The supporting reagent kit can continuously prepare about 260 gels.

Product Name

Gel Casting System

Cat.No.

T-20 PLUS

Applications

Production of polyacrylamide gradient gels for WB process

Gel Concentration Range

4%～20%

Gel Specifications

Mini-sized gel, thickness of 0.75mm/1.0mm/1.5mm

Gel Electrophoresis Time

Approx.40s per gel

Reagent Bottle Rack

5×500mL wide-mouth round-shouldered reagent bottles (4 for reagents, 1 for cleaning) / 1×waste liquid cup (500mL beaker)

Automatic Cleaning

Supports automatic flushing of mixing lines during gel filling intervals to prevent gelation, and one-button cleaning of lines

Automatic Pre-filling

Supports automatic filling of gel filling lines

Fault Indication

Equipped with fault indication function

Operation Mode

7-inch English color LCD touch screen

Operating Environment Temperature

10℃ to 35℃

Input Voltage

100~240VAC, 50/60Hz

Rated Power

270W

Dimensions

305×305×270mm

Weight

12.5Kg
