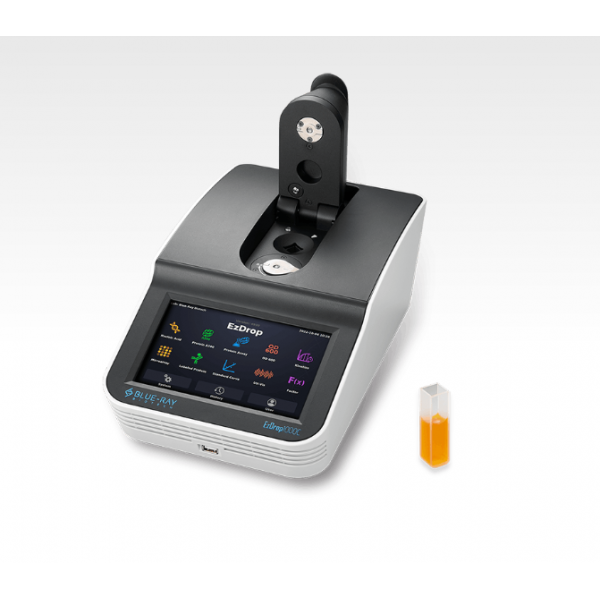

EzDrop 1000C Micro-Volume / Cuvette Spectrophotometer

$9,000.00
CNSBRED-1000C
10 Items
Quantity

EzDrop 1000C Micro-Volume/Cuvette Spectrophotometer helps you make the most of your precious sample and time, providing measurement results within 3 seconds. The instrument offers dual modes for micro-volume and cuvette detection, as well as an intuitive touch screen for easy operation. These features combine to meet a wide range of nucleic acid and protein quantification requirements. EzDrop 1000C can be used as a standalone unit or connected to a PC for increased flexibility in the sample-to-data process.

Features

Get Results within Seconds

Fast sample quantification in 3 seconds with the adjustable pathlength selector.

Dual Measurement Modes

Micro-Volume Mode

- Only 1 μL of undiluted sample is needed.

- The sample window is coated with a nano hydrophobic layer to stabilize the liquid column.

- The detection arm is cushioned to protect it from shock and impact during closure.

Cuvette Mode

- EzDrop 1000C has built in 37- 45°C temperature control and stir functions to meet specific applications.

Intuitive Touch Screen for Easy Operations

Operation of the 7‘’ touchscreen is intuitive and allows the analysis of different samples with the touch of a button.

Assist Light for Perfect Placing of the Sample

The assist light minimizes sample placement errors caused by inadequate ambient lighting.

Flexible Data Management

EzDrop 1000C can be conveniently used as a standalone device, or connected to a computer for the easy generation of reports.

Applications

A wide variety of sample quantification applications include:

Nucleic acid and protein analysis

OD600 measurement

Microarray and labeled protein analysis

Kinetics

Full spectrum scans

Specifications

Micro-Volume Mode
Minimum Sample Volume 1 µL
Pathlength 0.5 mm / 0.05 mm
Light Source Xenon flash lamp
Detector Type 2048 element CMOS
Wavelength Range 190 - 1000 nm
Wavelength Accuracy ±1.0 nm
Spectral Resolution 1.5 nm (FWHM at Hg 253.7 nm)
Absorbance Precision Raw: 0.0015 A (0.5 mm); 0.03 A (1 cm equivalent)
Absorbance Accuracy 1.5% at 1.0 A at 300 nm
Absorbance Range (1 cm equivalent) 0.04 - 400 A
Detection Range dsDNA: 2 - 20000 ng/µL; BSA: 0.06- 600 mg/mL
Measurement Time < 3 seconds
Cuvette Mode
Pathlength 10, 5, 2, 1, 0.5, 0.2, 0.125, 0.1 mm
Absorbance Range (1 cm equivalent) 0.002 - 1.5 A
Detection Range dsDNA: 0.3 - 75 ng/µL; BSA: 0.003 - 2.25 mg/mL
Stirring 8 Speeds (150 - 850 rpm)
Temperature Control 37 - 45℃ ±0.5℃ (Quartz Cuvette)
Software
Operating System Custom Linux based OS
PC Software Requirement Windows® 7, 10 and 11, 64 bit
General
Display 7” touch screen, 1280*800 high-definition color display
Connectivity USB-A port x1 (Data output); USB-B port x1 (PC connection)
Footprint Dimensions (W x D x H) 206 x 333 x 166 mm (8.1 x 13.1 x 6.5 In.)
Weight 3.3 kg (7.3 lbs.)
Glove Compatibility All common lab gloves
Internal Storage 32 GB flash memory
Operating Voltage Input: AC 100-240 V, 50/60 Hz; Output: DC 24 V, 2.08 A
Certifications CE

Resources

EzDrop 1000C User Manuall

EzDrop 1000C PC Software
