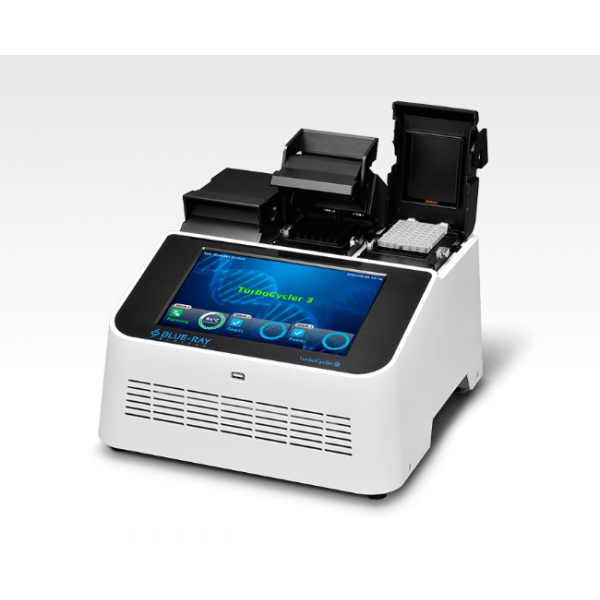

TurboCycler 3 Thermal Cycler

$9,800.00
CNSTCTT-4810
10 Items
Quantity

High-Throughput Triple-Block Gradient PCR Thermal Cycler

TurboCycler 3 is the most powerful high-throughput PCR thermal cycler in its class. Run 3 independent experiments (3x48 samples) simultaneously with unmatched flexibility. Fast gradient optimization and advanced ramp rate control tailor PCR conditions for maximized efficiency. These features unite to boost your research throughput.

Features

Triple-Block Flexibility

Three distinct PCR protocols can be run at the same time, perfect for multi-user environments and diverse experiments with low samples.

High-Throughput Efficiency

Maximize throughput with up to 3 x 48 x 0.1/0.2 ml samples.

Fast Gradient Optimization

PCR conditions across the three independent blocks are easily adjusted and range from 30 to 100 °C with a maximum span of 30 °C.

Advanced Ramp Rate Control

Ramp rate can be adjusted from 0.1 to 5.0 °C/sec, to accommodate different assays including CRISPR-related experiments.

Intuitive Operation

Effortless programming on a large 10.1” color touch screen with a user-friendly interface.

Continuous Reliability: Zero Downtime

Each of the three independent block modules can be independently calibrated to ensure uninterrupted operation during maintenance.

Industry-first 8-zone gradient

Precise 8-zone temperature optimization per block, accelerating protocol development for research labs and reagent manufacturing.

Continuous Reliability

Independent blocks ensure uninterrupted operation during maintenance.

Specifications

Sample Block
3 x 48 Well, Gradient Block Compatible with 0.2 ml or 0.1 ml PCR tube, strip, non-skirted, and semi-skirted 48-well plate
Block Temperature
Block Temperature Range 4.0 - 100 °C
Max. Heating / Cooling Rate 5.0 °C/sec / 3.0 °C/sec
Temperature Accuracy +/- 0.3 °C
Temperature Uniformity +/- 0.4 °C
Adjustable Ramp Rate Yes, 0.1 - 5.0 °C/sec
Gradient Temperature
Gradient Direction Increase in vertical direction
Gradient Temperature Range 30 - 100 °C
Gradient Temperature Difference Max span 30 °C
Heater Lid
Temperature Setting Range 35 - 130 °C or off
Temperature Accuracy +/- 1.0 °C
Software
Portability of Protocols Save and transfer to another TurboCycler via USB flash drive
Stored Program No. > 4,000 sets
Registered User Folder No. 100 sets
User Folder Password Protection Yes
Run Status Report Yes, HTML output and transfer via USB flash drive
Real-time Temp. Profile Export Yes, CSV output and transfer via USB flash drive
Tools Tm calculator, Copy number convertor, Master mix preparation wizard
General
Display 10.1” color LCD with capacitive touch panel
Data Port 1 USB Type-A front port for USB flash drive
Auto restart after Power Outage Yes
Footprint Dimensions (H x W x D) 236 mm x 356 mm x 362 mm
Weight 13 kg
Power Supply AC 100 - 240 V, 50/60 Hz, 1000 W
Certification CE

Resources

TurboCycler 3 User Manual
