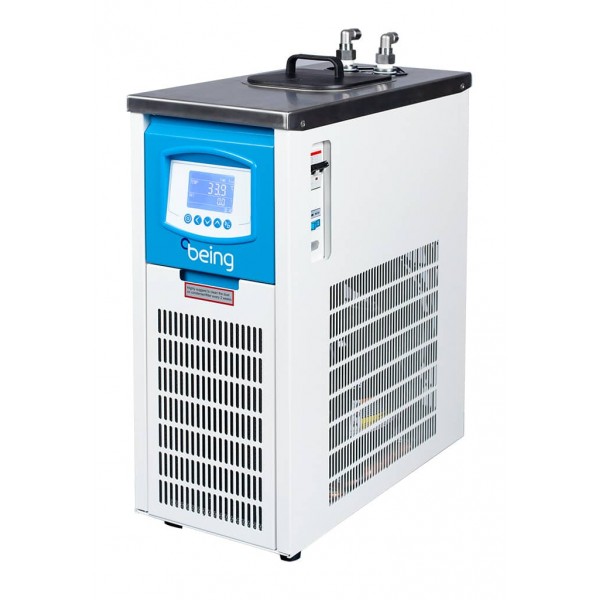

Recirculating Chiller 0.2 cu ft (5L)

$1,940.00

Sku: CNSBRC-03

In stock: 10 Items

Performance and Features

Designed so that test results are in line with international standards DIN 12880.
PID temperature controller with LCD screen provides accurate and reliable temperature control.
Automatic calibration function, be able to adapt to a variety of laboratory environments.

Convenience

A product line breadth to meet a variety of needs
Wide range of options to meet a variety of experimental needs.
Temperature/Capacity/Liquid Flow/Pressure/Control Mode/Internal Circulation/External Circulation.
Convenient design for easy maintenance
Round curved inner angle is easy to clean.
Inner chamber is made from corrosion-resistant mirror stainless steel.

Safety

Preset On/Off function.
Built-in power interruption protection function, automatic run after power interruption.
Independent over-temperature protection meets DIN 12880 International standard requirements.
Temperature deviation alarm.
Over-current protection alarm.

Specifications

Capacity
Storage Tank (L)	5
Liquid （L）	3.5
Cooling Feature
Lowest Temp Without Load (℃)	–20℃
Temperature Range (℃)	–20℃ to 20℃
Temperature Stability (℃)	±2℃
Cooling capacity（W）@20℃	580
Cooling capacity（W）@10℃	530
Cooling capacity（W）@0℃	470
Cooling capacity（W）@-10℃	300
Cooling capacity（W）@-20℃	100
Refrigerant	R404A
Electrical
Whole unit power（W）	550
Electrical Plug Type	NEMA 5-15
Power Requirement	115VAC / 60Hz
Safety Features	Delay, leakage, overcurrent, overvoltage
Pump
Pump type	DC Magnetic Drive Vortex
Recirculating Pump Power（W）	30
Pump Flow Rate（L/min）	6
Max. Pump Head（m）	9
Pump Max. Pressure (psi)	13 (90KPa)
Inlet/Outlet Tube OD（mm）	Ø10 (DN15)
Inlet/Outlet Fitting Type	Push-to-connect
Other Features
Feet / Caster	Feet
Noise (dB)	≤45
Dimensions
Liquid Tank (H x W x D) (inch)
Exterior (H x W x D) (inch)
Net Weight（kg）	32
Reservoir Dimension（mm）	240 x 150 x 150
Exterior Dimension (H x W x D)（mm）(including feet)	511 x 230 x 450
Supported Rotavaps（Capacity x Units）	2L x 1
SKU Number	BRC15103U
