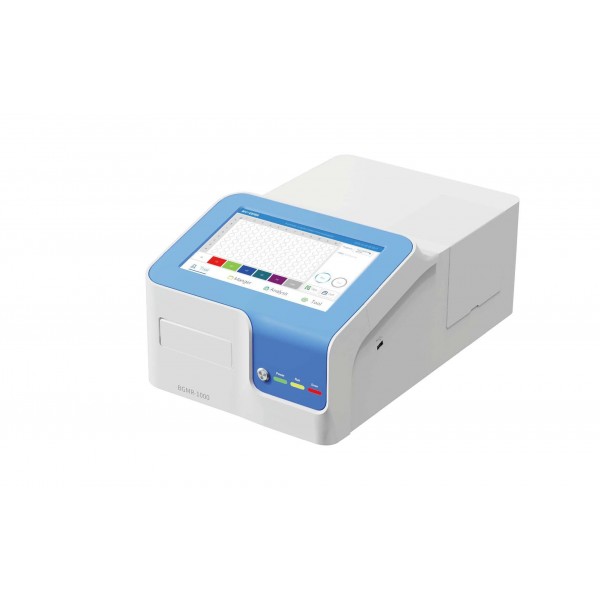

BGMR-1000S Enzyme-Linked Microplate Reader

$5,820.00
CNSBGMR-1000S
10 Items
Quantity

Custom optical filters are available for the CNSBGMR-1000S upon request at US$100 per filter.

Microplate Reader, 10.1" Touchscreen, 400–750 nm

Brand CravitySci
Item No. CNSBGMR-1000S
Product Type Microplate Reader
Wavelength Range 400–750 nm
Optical System 8-Channel Optical Filter Measurement System
Standard Filters 405, 450, 492, 630 nm
Filter Capacity Up to 8 Filters
Absorbance Range 0–5 OD
Display 10.1-inch Touchscreen
Control System Embedded Software
Dimensions 300 × 470 × 200 mm
Weight 13 kg

Product Description

The CravitySci CNSBGMR-1000S Microplate Reader is a versatile and user-friendly instrument designed for enzyme-linked immunosorbent assays (ELISA), enzyme kinetic studies, and various absorbance-based microplate applications.

Featuring an optoelectronic measurement system with a wavelength range of 400–750 nm, the CNSBGMR-1000S provides rapid and accurate absorbance measurements for routine laboratory testing. The instrument can complete single-wavelength measurements in as little as 6 seconds per 96-well plate and dual-wavelength measurements in approximately 10 seconds per 96-well plate.

The integrated 10.1-inch touchscreen and embedded software provide intuitive standalone operation, allowing users to perform measurements, analyze results, store data, and generate reports without requiring an external computer.

Equipped with an 8-position optical filter system, manually replaceable filters, and adjustable plate shaking, the CNSBGMR-1000S supports flexible workflows for scientific research, agricultural analysis, food testing, and other laboratory applications.

Key Features

  • 10.1-inch Touchscreen: Intuitive standalone operation with integrated measurement, data analysis, storage, and reporting capabilities.
  • Wavelength Range: Supports absorbance measurements from 400 to 750 nm.
  • Rapid Measurement: Single-wavelength reading in approximately 6 seconds and dual-wavelength reading in approximately 10 seconds per 96-well plate.
  • Flexible Optical Filter System: Includes four standard filters (405, 450, 492, and 630 nm), with capacity for up to eight filters.
  • Replaceable Filters: Optical filters can be manually replaced according to different measurement requirements.
  • Multiple Measurement Modes: Supports endpoint, kinetic, and inhibition-rate measurements.
  • Adjustable Plate Shaking: Three shaking speeds, including high, medium, and low.
  • Open Reagent System: Allows flexible reagent selection without requiring a specific reagent brand.
  • Standard Curve Management: Supports automatic storage and adjustment of standard curves.
  • Flexible Data Analysis: Provides cutoff calculations, linear regression, four-parameter regression, and additional calculation methods.
  • Convenient Data Export: Supports Excel, TXT, PDF, and XLS formats.
  • Report Generation: Supports report customization and printing through an optional USB thermal printer.
  • Multiple Connectivity Options: Includes USB Type-A, USB Type-B, Ethernet, and serial connections.

Efficient Microplate Analysis:
The CNSBGMR-1000S combines fast 96-well plate measurements, a user-friendly touchscreen interface, customizable optical filters, and integrated data analysis tools to streamline routine laboratory testing and research workflows.

Optical Specifications

Light Source 6V / 10W Long-Life Halogen Lamp
Wavelength Range 400–750 nm
Standard Filters 405, 450, 492, 630 nm
Maximum Filter Capacity 8 Filters
Filter Bandwidth 6–8 nm
Absorbance Range 0–5 OD
Resolution 0.001 OD
Wavelength Error ≤ ±3 nm
Wavelength Repeatability ≤ ±1.5 nm

Performance Specifications

Linearity r > 0.999 (0–2.0 OD)
r > 0.99 (2.0–4.0 OD)
Repeatability ≤ 0.3% (0–3.0 OD)
≤ 2% (3.0–4.0 OD)
Stability ≤ 0.3% (0–3.0 OD)
≤ 2% (3.0–4.0 OD)
Accuracy ≤ ±0.005 OD (0–2.0 OD)
≤ ±1% (2.0–3.0 OD)
≤ ±1.5% (3.0–4.0 OD)
Sensitivity ≥ 0.010 OD
Channel Difference < 0.01 OD (1.0 OD Standard Filter)
Measurement Speed Single Wavelength: 6 Seconds/96 Wells
Dual Wavelength: 10 Seconds/96 Wells

Additional Specifications

Plate Shaking 3 Speeds (High, Medium, Low)
Control Method 10.1-inch Touchscreen with Embedded Software
Data Export Excel, TXT, PDF, XLS
Printing Optional USB Thermal Printer
Connectivity USB Type-A × 2, USB Type-B × 1,
Ethernet Port, Serial Port
Dimensions 300 × 470 × 200 mm
Weight 13 kg

Applications

  • Enzyme-Linked Immunosorbent Assays (ELISA)
  • Enzyme Kinetic Studies
  • Absorbance-Based Microplate Assays
  • Scientific and Laboratory Research
  • Agricultural and Animal Husbandry Testing
  • Food and Feed Testing
  • Routine Laboratory Analysis

Optical Filter Configuration

The CNSBGMR-1000S comes standard with four optical filters at 405 nm, 450 nm, 492 nm, and 630 nm. The 8-position filter system allows users to expand the filter configuration according to their experimental requirements.

Custom Optical Filters:
Additional optical filters can be customized upon request to support specific wavelength requirements within the instrument's operating range. Custom filters are available at US$100 per filter.
