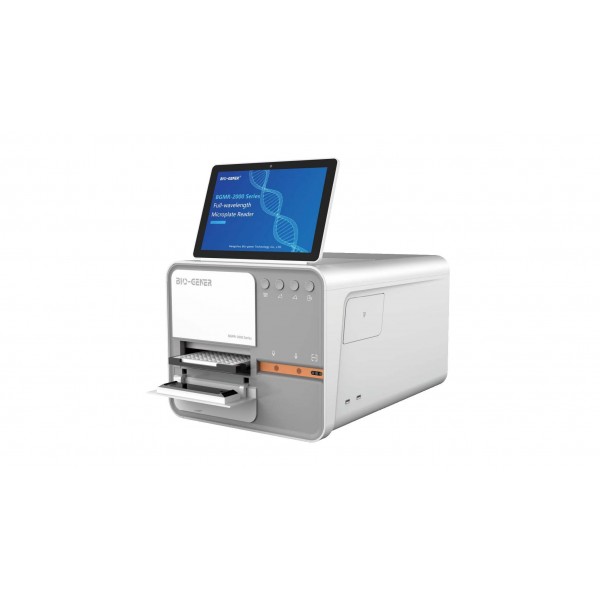

BGMR-2000A Full-wavelength Microplate Reader

$22,840.00
CNSBGMR-2000A
10 Items
Quantity

Full-Wavelength Microplate Reader, 200–1000 nm, 96/384-Well

Brand CravitySci
Item No. CNSBGMR-2000A
Product Type Full-Wavelength Microplate Reader
Wavelength Range 200–1000 nm
Plate Compatibility 96-Well and 384-Well Microplates
Optical System Grating Monochromator (1 nm Step)
Light Source Xenon Lamp
Absorbance Range 0–5 OD
Cuvette Function Yes
Fluorescence Detection 2 Channels
Temperature Range RT +5°C to 65°C
Display 10.1-inch Capacitive Touchscreen
Dimensions (L × W × H) 318 × 450 × 265 mm
Weight 22 kg

Product Description

The CravitySci CNSBGMR-2000A is an advanced full-wavelength microplate reader designed for a wide range of absorbance-based assays, enzyme kinetic studies, and laboratory research applications. Featuring a broad detection wavelength range of 200–1000 nm, the instrument delivers flexible and efficient microplate analysis with a measurement speed of 15 seconds or less.

The instrument utilizes a grating monochromator with 1 nm wavelength increments and a long-life xenon lamp to support precise wavelength selection and reliable optical measurements. It accommodates both 96-well and 384-well microplates and supports simultaneous detection at six wavelengths.

In addition to microplate absorbance measurements, the CNSBGMR-2000A incorporates cuvette measurement capabilities and a two-channel fluorescence detection system, providing additional flexibility for different experimental applications.

The high-resolution 10.1-inch capacitive touchscreen features an adjustable viewing angle and embedded software for convenient standalone operation. Intelligent functions, including voice interaction, barcode scanning, and facial recognition, help simplify instrument operation and laboratory workflows.

Key Features

  • Full-Wavelength Detection: Broad wavelength range of 200–1000 nm with simultaneous detection at six wavelengths.
  • Grating Monochromator: Precise wavelength selection with 1 nm increments.
  • Fast Measurement: Completes microplate measurements in 15 seconds or less.
  • Dual Plate Compatibility: Supports both 96-well and 384-well microplates.
  • Multiple Measurement Modes: Supports endpoint, kinetic, and inhibition-rate measurement methods.
  • Cuvette Measurement: Integrated cuvette function supports absorbance measurements from 0 to 4.000 Abs.
  • Fluorescence Detection: Two-channel fluorescence measurement system with dedicated excitation and emission wavelengths.
  • Temperature Control: Integrated temperature regulation from room temperature +5°C to 65°C.
  • Adjustable Plate Shaking: Three shaking speeds, including high, medium, and low.
  • 10.1-inch Capacitive Touchscreen: High-resolution display with an adjustable viewing angle from 0° to 90°.
  • Voice Interaction: Supports voice control and interaction for convenient instrument operation.
  • Barcode Scanning: Integrated code-scanning functionality supports laboratory workflows.
  • Facial Recognition: Built-in facial recognition functionality.
  • Data Storage: 16 GB storage capacity supporting more than 20,000 data records.
  • Multiple Connectivity Options: USB Type-A, USB Type-B, and Ethernet connections.
  • Optional Printing: Supports thermal report printing with an optional printer.

Advanced Multi-Function Microplate Analysis:
Combining full-wavelength absorbance detection, cuvette measurement, two-channel fluorescence detection, and intelligent touchscreen operation, the CNSBGMR-2000A offers a versatile platform for diverse laboratory research and analytical workflows.

Optical Specifications

Light Source Xenon Lamp, Up to 109 Flashes
Wavelength Range 200–1000 nm
Absorbance Range 0–5 OD
Optical System Grating Monochromator (1 nm Step)
Detection System Photodiodes
Accuracy @450 nm ≤ ±2 nm
Repeatability ≤ 0.2 nm

Absorbance Performance

Linearity @450 nm R² > 0.995 (0–3.0 OD)
Absorbance Accuracy @450 nm ±0.005 Abs (0–2.0 Abs)
±0.3% (2.0–3.0 Abs)
±2.0% (3.0–4.0 Abs)
Absorbance Repeatability @450 nm CV < 0.5%
Measurement Speed ≤ 15 Seconds

Cuvette Specifications

The integrated cuvette measurement function provides additional flexibility for absorbance-based analysis beyond standard microplate measurements.

Light Source Xenon Lamp, Up to 109 Flashes
Absorbance Range 0–4.000 Abs
Absorbance Stability ≤ 0.5% (0–3.0 Abs)
≤ 1.5% (3.0–4.0 Abs)
Absorbance Repeatability ≤ 0.5% (0–3.0 Abs)
≤ 1.5% (3.0–4.0 Abs)
Absorbance Accuracy ≤ 0.005 Abs (0–2.0 Abs)
≤ 1% (2.0–3.0 Abs)
≤ 2% (3.0–4.0 Abs)

Fluorescence Detection Specifications

The CNSBGMR-2000A features an integrated two-channel fluorescence detection system with dedicated excitation and emission wavelengths for fluorescence-based measurements.

Detection Channels 2 Channels
Light Source Single-Color LED
Excitation Wavelengths 470 nm / 624 nm
Emission Wavelengths 525 nm / 692 nm
Repeatability < 1.5%
Stability < 1.5%
Linearity R² ≥ 0.995

Temperature Control

Temperature Control Range RT +5°C to 65°C
Temperature Accuracy ±0.5°C at 37°C
Temperature Uniformity ±0.5°C at 37°C

Additional Specifications

Control Method 10.1-inch Touchscreen with Embedded Software
Screen Angle Adjustable from 0° to 90°
Plate Shaking 3 Speeds (High, Medium, Low)
Measuring Speed ≤ 15 Seconds
Storage Capacity 16 GB, More Than 20,000 Data Records
Voice Function Yes
Barcode Scanning Yes
Facial Recognition Yes
Connectivity USB Type-A × 2, USB Type-B × 1, Ethernet Port
Printing Optional Thermal Printer
Power Supply DC 15V, 13.4A, 201W
Dimensions 318 × 450 × 265 mm
Weight 22 kg

Applications

  • Enzyme-Linked Immunosorbent Assays (ELISA)
  • Enzyme Kinetic Studies
  • Full-Wavelength Absorbance Measurements
  • Cuvette-Based Absorbance Analysis
  • Two-Channel Fluorescence Detection
  • Scientific and Laboratory Research
  • Agricultural and Animal Husbandry Testing
  • Food and Feed Testing
  • Routine Laboratory Analysis
