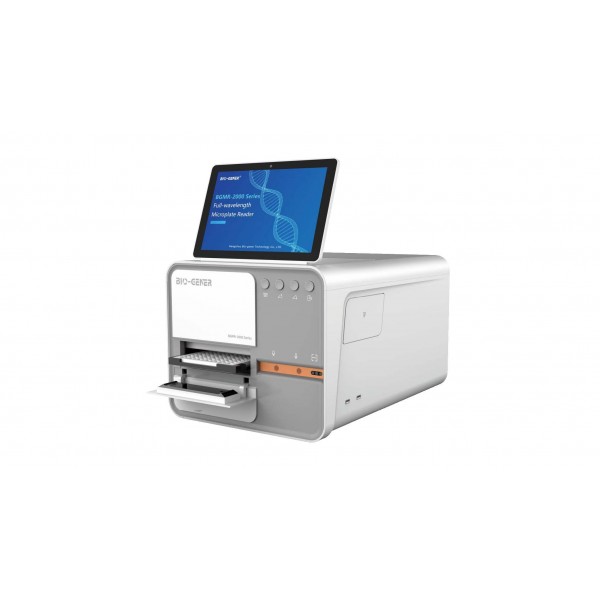

BGMR-2000B Full-wavelength Microplate Reader

$18,360.00
CNSBGMR-2000B
10 Items
Quantity

Full-Wavelength Microplate Reader, 200–1000 nm, 96/384-Well

Brand CravitySci
Item No. CNSBGMR-2000B
Product Type Full-Wavelength Microplate Reader
Wavelength Range 200–1000 nm
Plate Compatibility 96-Well and 384-Well Microplates
Optical System Grating Monochromator (1 nm Step)
Light Source Xenon Lamp
Absorbance Range 0–5 OD
Measurement Speed ≤ 15 Seconds
Temperature Range RT +5°C to 65°C
Display 10.1-inch Capacitive Touchscreen
Control System Embedded Software
Cuvette Function Not Included
Fluorescence Detection Not Included
Dimensions (L × W × H) 318 × 450 × 265 mm
Weight 22 kg

Product Description

The CravitySci CNSBGMR-2000B is an advanced full-wavelength microplate reader designed for absorbance-based assays, enzyme kinetic studies, and a wide range of laboratory research applications. With a broad detection wavelength range of 200–1000 nm, the instrument provides flexible and efficient microplate analysis with a measurement speed of 15 seconds or less.

Equipped with a grating monochromator offering 1 nm wavelength increments and a long-life xenon lamp, the CNSBGMR-2000B enables precise wavelength selection and reliable absorbance measurements. The instrument supports both 96-well and 384-well microplates, as well as simultaneous detection at six wavelengths.

The integrated temperature control system supports measurements and incubation-related workflows within a temperature range of room temperature +5°C to 65°C. Three adjustable plate shaking speeds provide additional flexibility for different assay requirements.

The instrument features a high-resolution 10.1-inch capacitive touchscreen with an adjustable viewing angle, embedded software, and intelligent functions including voice interaction, barcode scanning, and facial recognition. These capabilities help simplify operation and improve efficiency in routine laboratory workflows.

Key Features

  • Full-Wavelength Detection: Broad wavelength range of 200–1000 nm with simultaneous detection at six wavelengths.
  • Grating Monochromator: Precise wavelength selection with 1 nm increments for flexible absorbance measurements.
  • Fast Measurement: Completes microplate measurements in 15 seconds or less.
  • Dual Plate Compatibility: Supports both 96-well and 384-well microplates.
  • Multiple Measurement Modes: Supports endpoint, kinetic, and inhibition-rate measurement methods.
  • Xenon Lamp Technology: Long-life xenon light source supporting reliable optical performance.
  • Temperature Control: Integrated temperature regulation from room temperature +5°C to 65°C.
  • Adjustable Plate Shaking: Three shaking speeds, including high, medium, and low.
  • 10.1-inch Capacitive Touchscreen: High-resolution display with an adjustable viewing angle from 0° to 90°.
  • Voice Interaction: Supports voice control and interaction for convenient instrument operation.
  • Barcode Scanning: Integrated code-scanning functionality supports efficient laboratory workflows.
  • Facial Recognition: Built-in facial recognition functionality.
  • Data Storage: 16 GB storage capacity supporting more than 20,000 data records.
  • Multiple Connectivity Options: USB Type-A, USB Type-B, and Ethernet connections.
  • Optional Printing: Supports thermal report printing with an optional printer.

Advanced Full-Wavelength Microplate Analysis:
Combining 200–1000 nm absorbance detection, 96-well and 384-well plate compatibility, precise wavelength selection, integrated temperature control, and intelligent touchscreen operation, the CNSBGMR-2000B offers a flexible and efficient solution for routine laboratory testing and scientific research.

Optical Specifications

Light Source Xenon Lamp, Up to 109 Flashes
Wavelength Range 200–1000 nm
Absorbance Range 0–5 OD
Optical System Grating Monochromator (1 nm Step)
Detection System Photodiodes
Wavelength Accuracy @450 nm ≤ ±2 nm
Wavelength Repeatability ≤ 0.2 nm

Absorbance Performance

Linearity @450 nm R² > 0.995 (0–3.0 OD)
Absorbance Accuracy @450 nm ±0.005 Abs (0–2.0 Abs)
±0.3% (2.0–3.0 Abs)
±2.0% (3.0–4.0 Abs)
Absorbance Repeatability @450 nm CV < 0.5%
Measurement Speed ≤ 15 Seconds

Temperature Control

Temperature Control Range RT +5°C to 65°C
Temperature Accuracy ±0.5°C at 37°C
Temperature Uniformity ±0.5°C at 37°C

Additional Specifications

Control Method 10.1-inch Touchscreen with Embedded Software
Screen Angle Adjustable from 0° to 90°
Plate Shaking 3 Speeds (High, Medium, Low)
Measuring Speed ≤ 15 Seconds
Storage Capacity 16 GB, More Than 20,000 Data Records
Voice Function Yes
Barcode Scanning Yes
Facial Recognition Yes
Connectivity USB Type-A × 2, USB Type-B × 1, Ethernet Port
Printing Optional Thermal Printer
Power Supply DC 15V, 13.4A, 201W
Dimensions 318 × 450 × 265 mm
Weight 22 kg

Applications

  • Enzyme-Linked Immunosorbent Assays (ELISA)
  • Enzyme Kinetic Studies
  • Full-Wavelength Absorbance Measurements
  • Endpoint and Kinetic Assays
  • 96-Well and 384-Well Microplate Analysis
  • Scientific and Laboratory Research
  • Agricultural and Animal Husbandry Testing
  • Food and Feed Testing
  • Routine Laboratory Analysis
