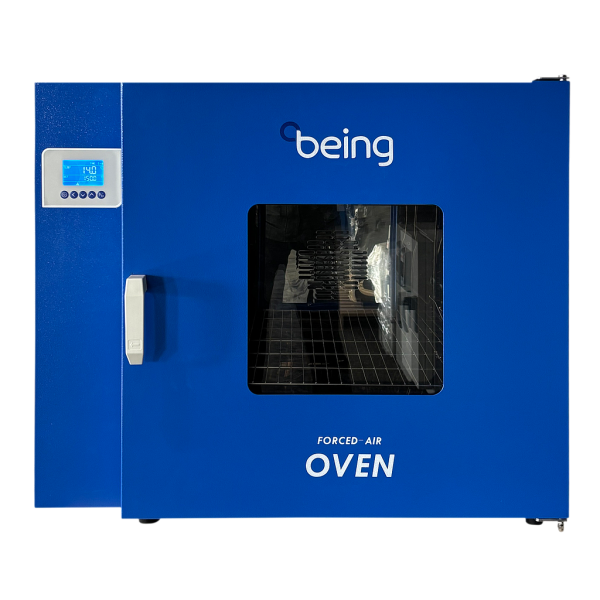

Forced-air Convection Ovens EOF-70 - 2.8 cu ft (80L)

$1,900.00
CNSEOF-70
10 Items
Quantity

The EOF Forced-air Convection Drying Oven series distributes heat evenly inside the chamber with an integrated fan. This is ideal for drying protocols with very tight temperature requirements. The BEING E-series professional PID controller has a 3.1-inch easy-to-read, real-time LCD display to select the various fixed-value program functions with all the parameters on a single screen, providing quick and easy setting of temperature, time, and other parameters — and convenient operation. The doors are engineered with airtight sealing and inner chambers are designed with corrosion resistant stainless steel. Safety alarms are installed for – overtemperature, over current protection, and temperature deviation. These ovens provide excellent temperature stability and reproducibility for all your desired application needs ensuring maximum efficiency, safety, and ease of use.

Chamber Volume (ft3/ L)

2.8 cu ft (80 liters)

Temperature Range

Ambient+18℉ to 482℉
Ambient+10℃ to 250℃

Uniformity @ 150℃

±2.0

Time to reach 150°C

40min

Temperature Stability

±0.5℃

Display Resolution

0.1

Shelves (Std./ Max.)

2/9

Shelves Loading (lb / Kg)

33 / 15

Internal Dimension

(WxHxD) (in / mm)

17.7 × 17.7 × 15.8
450 x 450 x 400

External Dimension

(WxHxD) (in / mm)

29.1 × 24.8 × 20.9
740 x 630 x 530

Net Weight (lb / Kg)

108 / 49

Soak Timer (hh:mm)

0 - 99:59

Electrical Requirement

120V 60Hz

Electrical Plug Type

NEMA5-15P

Power Consumption

1650W

Catalog Number

EO242050U
